หมายเลขรุ่น: HWN15000U
แบรนด์: คำสั่งซื้อ OEM ที่ยอมรับได้
แหล่งพลังงาน: ไฮดรอลิก
ใบสมัคร: อัตโนมัติ
บรรจุภัณฑ์: กล่องส่งออก
การเดินทาง: Ocean,Air
สมุฏฐาน: จีน
ท่าเรือ: NINGBO,SHANGHAI
ชนิดการชำระเงิน: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

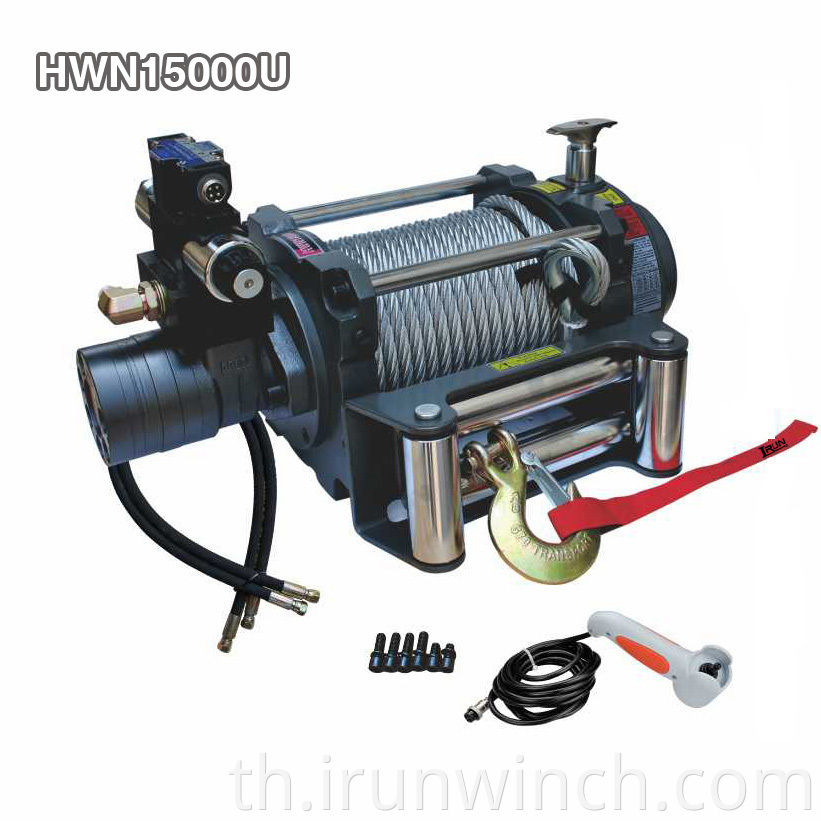

เครื่องกว้านไฮดรอลิกสำหรับงานหนัก 15000 lb Item NO. HWN15000U
กว้านมีกำลังดึง 15,000 ปอนด์
เครื่องกว้านติดตั้งระบบเบรกอัตโนมัติสำหรับงานหนักเพื่อการทำงานที่ปลอดภัย และตัวลดเกียร์ดาวเคราะห์สองขั้นตอนที่ได้รับการจดสิทธิบัตรเหล็กชุบแข็งช่วยให้ส่งกำลังที่มีประสิทธิภาพสูง กว้านแต่ละตัวมาพร้อมกับเชือกลวด, ลูกกลิ้งล้มเหลวและ Winch Accessoires
คุณสมบัติ:
1. คลัตช์สปูลลิ่งฟรี: แมนนวล แอร์คลัช หรือ แมนนวล และ Air
2. การเบรกแบบกรวยสกรูอัตโนมัติ
3. เฟืองท้ายที่ออกแบบมาเป็นพิเศษสำหรับงานหนัก
4. รูปทรงออกแบบมาเป็นพิเศษเพื่อความสะดวกในการติดตั้งและดูดี
5. สำหรับการใช้งานทางวิศวกรรมที่มีอยู่
6. DC 12V หรือ DC 24V Power ไดรฟ์ตัวเลือก
7. มีตัวปรับความตึง SWR ให้
8. ใช้งานเป็นลิฟท์ไม่ได้
เอช HWN15000U
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804kgs) |
| Motor: permanent magnet | 80ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5″×8. 5″ (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 15000(6804) | 18.0 (5.5) | |
| 2 | 12120(5498) | 40.7(12.4) | |
| 3 | 10168(4612) | 65.9(20.1) | |
| 4 | 8757(3972) | 86.9(26.5) |

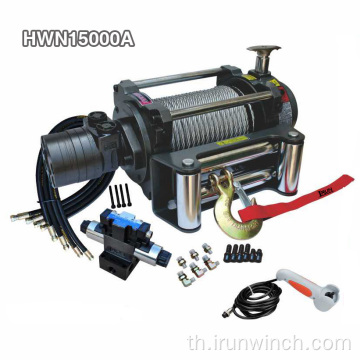

| ITEM | HWN15000A | HWN15000U | |
| Overall dimensions | 21.5″×8.9″×10.3″ | 21.5″×8.9″×11.5″ | |
| (L×W×H) | 547mm×226mm 262mm | 547mm×226mm×292mm | |
| Net weight (Ibs) | 151.5 | 152 | |
| (kgs) | 68.5 | 68.8 |
ขนาดโดยรวม 21.0″ x 8.9″ x 11.5″
(ยาว x กว้าง x สูง) 534 มม. x 226 มม. x 292 มม
น้ำหนักสุทธิ 68.8 KGS

ประเภทผลิตภัณฑ์ : รอกไฮดรอลิก 4wd > กว้านรถบรรทุกไฮดรอลิก
